Overview and Dimensions

The Windmill Ceiling Fan, designed in a transitional style, measures 52 inches in blade span and stands 16.46 inches tall from ceiling to the bottom of the motor hub using the supplied 6-inch downrod. This fan is engineered for rooms up to 400 square feet and requires a minimum ceiling height of 8 feet for safe installation. It supports vaulted ceilings up to 25° with an 18-inch downrod and offers an optional 45° adapter (model 7-1745-86) for steeper angles. The maximum downrod length available is 48 inches, allowing flexibility in mounting height.

Motor and Performance Specifications

Equipped with a robust and energy-efficient DC motor (model DC-165M), the fan delivers six forward and reverse speeds controlled via the included full-function handheld remote. The motor operates quietly and is backed by a limited lifetime warranty. Electrical consumption is minimal, with amperage ratings ranging from 0.39 to 0.04 depending on speed, ensuring energy savings without compromising airflow.

Blade Configuration and Airflow

The fan features 10 blades with a 30-degree pitch, finished in a Weathered Oak tone that complements the Oiled Bronze housing for a rustic farmhouse or industrial aesthetic. This blade design produces an optimal airflow of 3,472 cubic feet per minute (CFM) at maximum speed while consuming only 33 watts of power, combining efficiency with effective air circulation.

Control and Operation

Operation is facilitated by a handheld remote control that manages six speed settings in both forward and reverse directions. This allows seasonal adjustment to optimize comfort and energy use: counterclockwise blade rotation pushes cool air downward for summer, while clockwise rotation circulates warm air upward during winter months.

Installation and Compatibility

The Windmill fan is stem-hung and UL listed for indoor use. It is available in three finishes—Black, Oiled Bronze, and Galvanized—to suit various interior design schemes. While the fan does not include a light kit, multiple compatible light kit options (models 1902-86 through 1975-86) are available separately to customize lighting needs.

Recommended Applications

This ceiling fan is ideal for medium to large indoor spaces such as bedrooms, family rooms, lofts, gyms, and even garages or warehouses. Its rustic design and efficient airflow make it suitable for farmhouse and industrial-style interiors.

What's Included

• Windmill Ceiling Fan with 10 blades in Oiled Bronze finish
• 6-inch downrod for standard mounting
• Full-function handheld remote control
• 80-inch lead wire for flexible installation
• Limited lifetime warranty on motor

What Needs to Be Ordered Separately

• Optional light kits (models 1902-86, 1903-86, 1904-86, 1905-86, 1974-86, 1975-86)
• Additional downrods up to 48 inches for higher ceilings
• 45° vaulted ceiling adapter (model 7-1745-86) if needed

Key Features

• Strong, quiet DC motor with six-speed forward and reverse control
• Energy-efficient airflow of 3,472 CFM at 33 watts power consumption
• 10 rustic blades with 30° pitch for optimal air movement
• Compatible with vaulted ceilings up to 25° with appropriate downrod
• Available in Black, Oiled Bronze, and Galvanized finishes
• UL listed for indoor use and suitable for rooms up to 400 square feet

Windmill Indoor Fan Dimensions

• Diameter: 52" Blade tip to blade tip

• Ceiling Fan Dimensions
• Ceiling fan height: 16.50" From ceiling to bottom of the motor hub when using the supplied 6"" down rod.

• Blade drop Height: 11.50" From ceiling to the bottom of the fan blades.

• Requires a 8' ceiling for proper mounting safety.

• This fan can be installed on a vaulted ceiling up to 25° with a minimum 18"" down rod. 45° adapter available 7-1745-86.
• Maximum optional downrod length is 48"


Motor Information

• Strong Efficient DC Motor DC-165M
• 6 speeds forward and reverse

• The motor is covered under a limited lifetime warranty and is available in 3 designer colors.

• 80" Lead wire


Fan Blades

• Windmill in the Oiled Bronze finish comes with 15 gorgeous rustic blades.

• The blades are a Weathered Oak finish, not reversible.

• The blade pitch is 30°

• The blades create an optimal airflow of 3472 CFM when used on the highest speed, while using only 33 watts of electricity!


Control

• Full function hand held remote control included.

• 6 Speeds forward and reverse.


Light Kit

• Light kit not included on this fan.

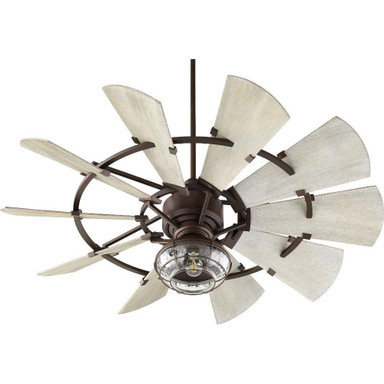

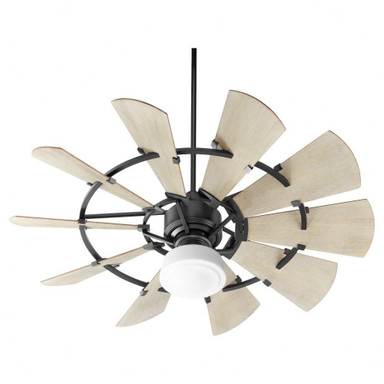

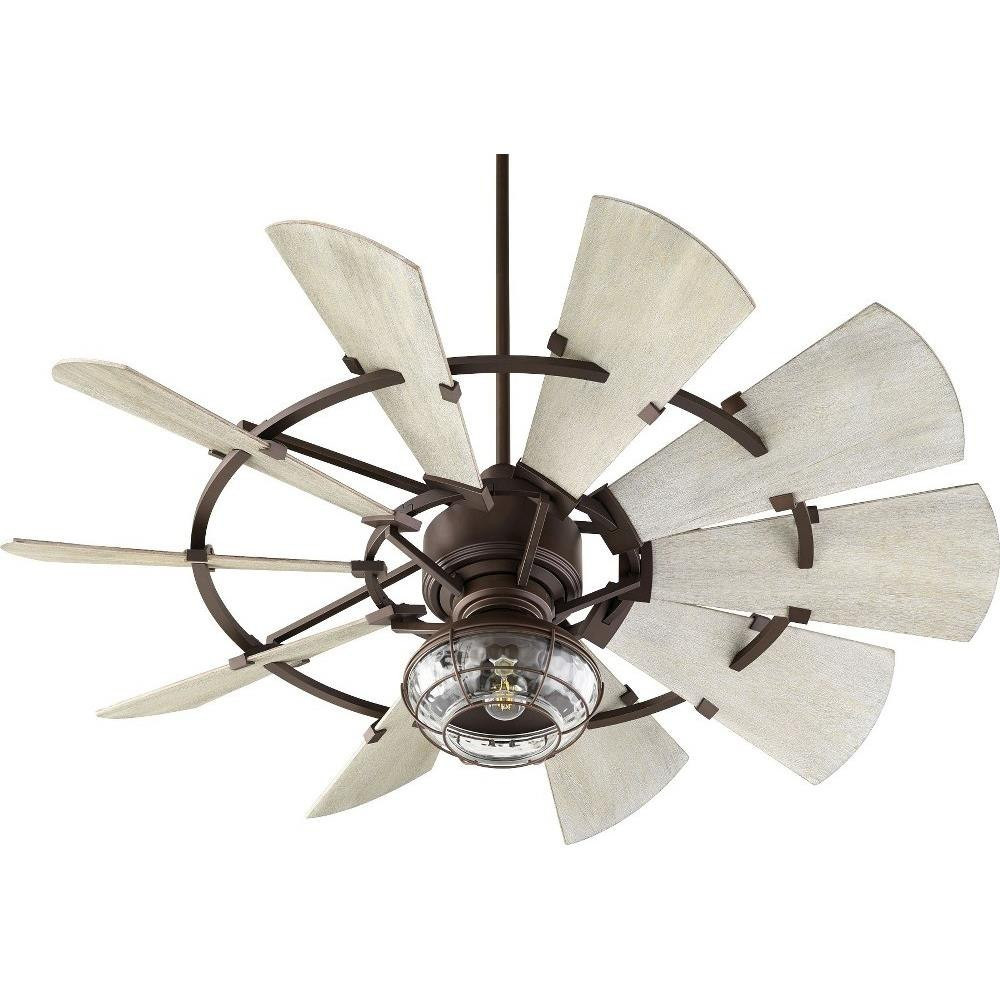

• Light kit is available for the Windmill. Options include 1902-86, 1903-86, 1904-86, 1905-86, 1974-86, 1975-86.


Room Suggestion

• The Windmill is a great choice for large rooms that are up to 400 square feet.

• Recommended indoor applications would be bedrooms, family or great rooms, main suite, loft, gym or exercise areas, garages, barns or warehouses.


Features

• UL listed for indoor location use.

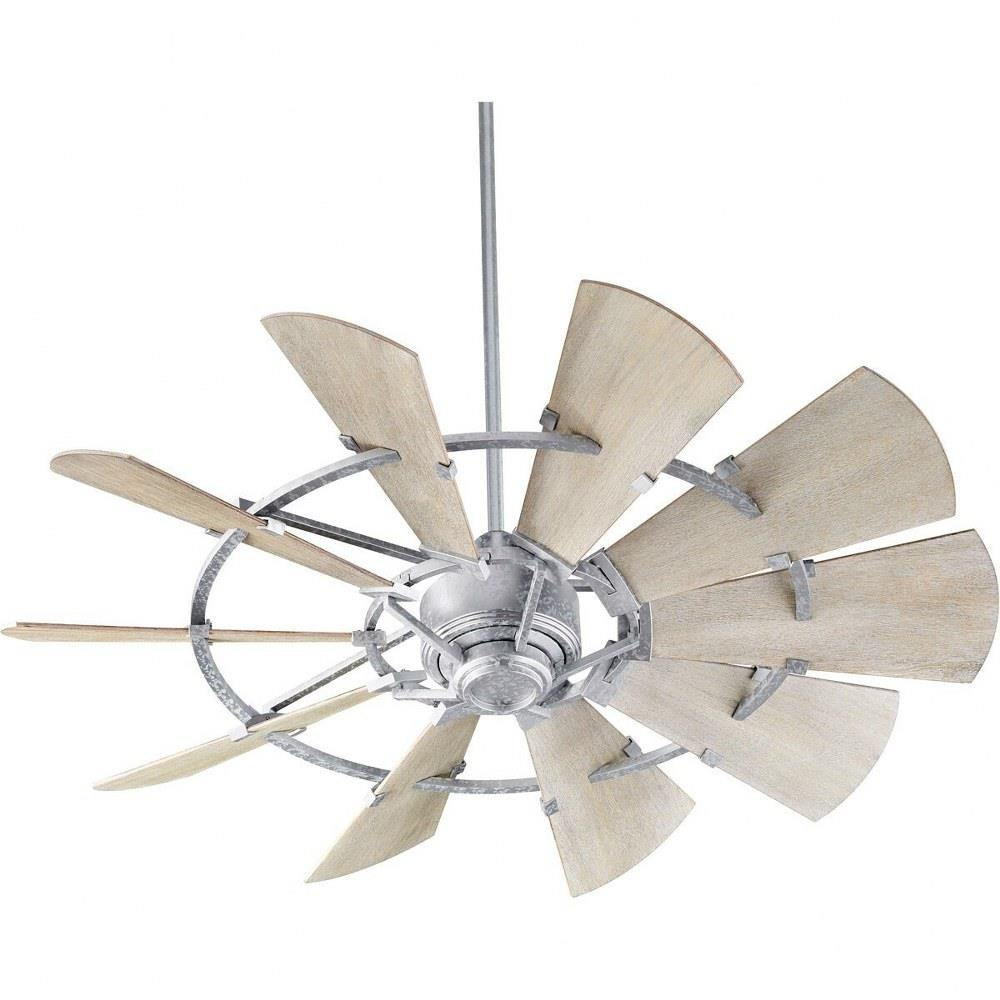

• Available in 3 finishes Black, Oiled Bronze and Galvanized.

• Quiet DC motor with included remote control system.

• Gorgeous blade design with 15 blades to create a windmill look and style.


Seasonal Settings

• Reverse your fan blade direction with the change of seasons for maximum comfort and energy savings.
• Summer Setting - When looking directly up at your fan from below, the blades should be moving in a counter clockwise direction, pushing cool air down.

• Winter Setting - When looking directly up at your fan from below, the blades should be moving in a clockwise direction, pushing air upwards, circulating warm air from ceilings.
