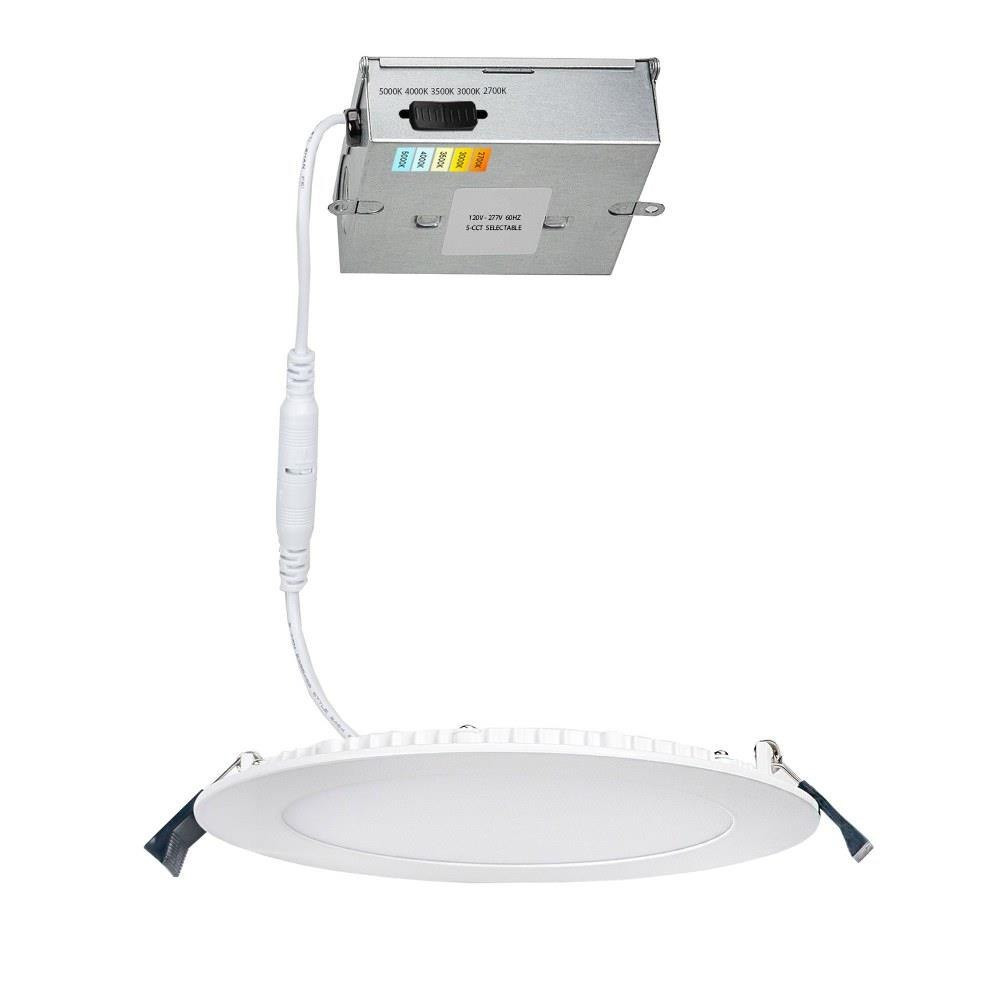

The wafer-thin Stephen Fold LED Recessed Kit with remote driver combines high quality light output and efficiency while eliminating the need for a large housing. This innovative design can be installed easily as a remodel or new construction with an optional frame-in kit sold separately for pre-wiring. Stephen Fold is available in a downlight version for general ambient lighting and an adjustable version with a gimbal that pivots 360 degrees on a hinge, perfect for slope ceilings, general lighting, accenting lighting, and wall washing. The integrated high output and energy efficient Stephen Fold LED module maintains at least 70% light output for 50,000 hours. The Stephen Fold is ideal for shallow ceiling applications with as little as 3-inch plenum clearance. Stephen Fold LED is offered in round and square with 2in, 4in, and 6in aperture options. Use part # R2ESAR-2 or R2ESAR-3 for the multi-light option with 2 and 3 light configurations.

Need help deciding which product is right for your space? Check out our BSH Buying Guide For Expert Advice

Quality Construction:

• Multiple LED array for uniform illumination.
• Slim, round 4" adjustable remodel downlights.
• Available in 4" and 6" sizes.
• Ultra-slim design installs in shallow ceiling depths as remodel or new construction.
• Optional frame-in kit for pre-wiring (sold separately: RER-FRAME).
• 6ft extension cable available to increase driver-to-downlight distance (Part #: RER-6).
• Steel driver housing with space for line-voltage connections.
• 6" low voltage plug-and-play connector from driver to downlight.
• Universal input driver: 120V-240V-277V.
• Smooth and continuous dimming with most standard LED dimmers (recommended: ELV or TRIAC).

Lighting Specifications:

• High powered replaceable LED module
• 5-CCT Selectable Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
• Lumens: 1340
• CRI: 90
• Rated Lifetime: 50,000 Hours
• Beam Spread: Flood
• Air Tight: TRUE

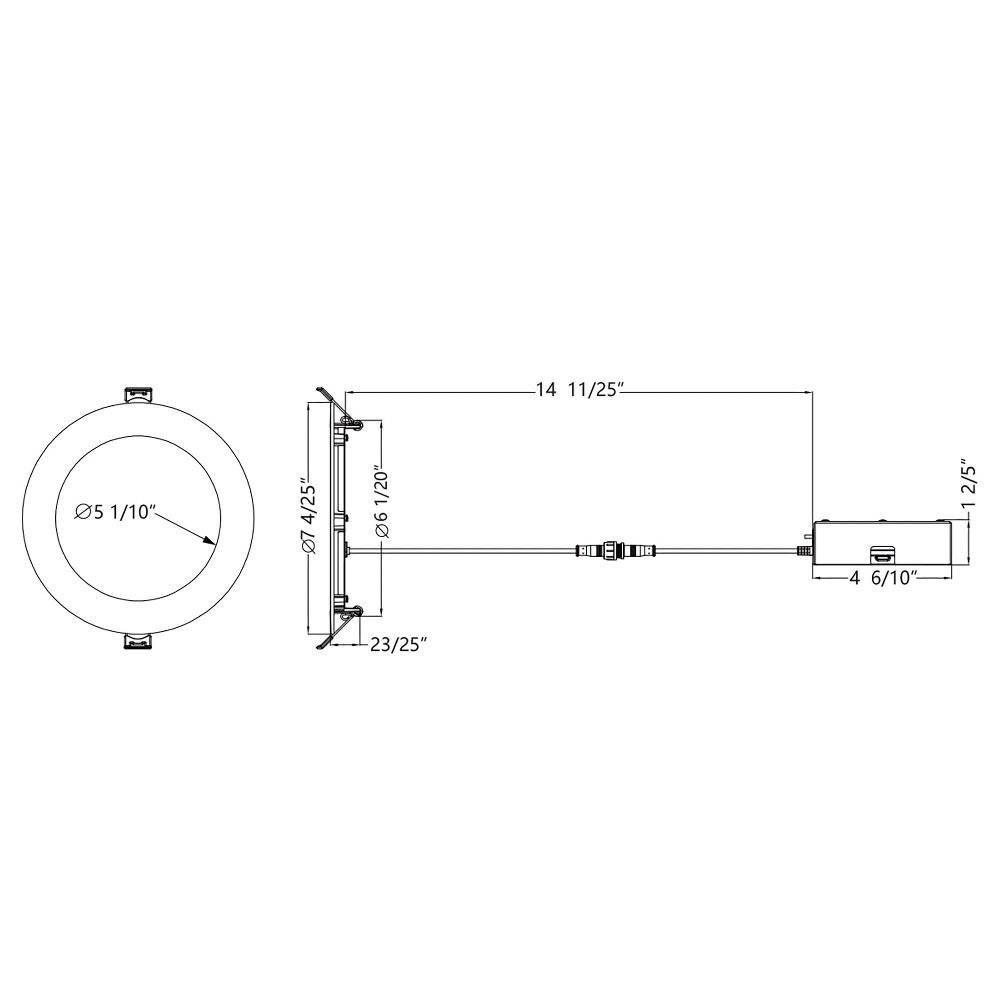

• Aperture Size: 5.88"
• Cutout Size: 6.25"
• Trim Size: 6.75"
• IC Rated: TRUE
• Shade Included: Yes
• Dimmable: ELV/TRIAC

Ratings / Certifications / Warranty:

• Standards: ETL & cETL
• Wet Location Listed
• Energy Star 2.0 Certified
• CEC Title 24 JA8-2016 Compliant
• Title 20 Compliant
• ADA Compliant
• 5 Years Functional / 2 Years Finish
