Amps: .39/.26/.17/.12/.07/.04
• Limited Lifetime Warranty
• Rod Length(s): 6.00

Warranty: Limited Lifetime
• Amps: .39/.26/.17/.12/.07/.04
• Rod Length(s): 6.00

Windmill Indoor Fan Dimensions

• Diameter: 52" Blade tip to blade tip

• Ceiling Fan Dimensions
• Ceiling fan height: 16.50" From ceiling to bottom of the motor hub when using the supplied 6"" down rod.

• Blade drop Height: 11.50" From ceiling to the bottom of the fan blades.

• Requires a 8' ceiling for proper mounting safety.

• This fan can be installed on a vaulted ceiling up to 25° with a minimum 18"" down rod. 45° adapter available 7-1745-86.
• Maximum optional downrod length is 48"


Motor Information

• Strong Efficient DC Motor DC-165M
• 6 speeds forward and reverse

• The motor is covered under a limited lifetime warranty and is available in 3 designer colors.

• 80" Lead wire


Fan Blades

• Windmill in the Oiled Bronze finish comes with 15 gorgeous rustic blades.

• The blades are a Weathered Oak finish, not reversible.

• The blade pitch is 30°

• The blades create an optimal airflow of 3472 CFM when used on the highest speed, while using only 33 watts of electricity!


Control

• Full function hand held remote control included.

• 6 Speeds forward and reverse.


Light Kit

• Light kit not included on this fan.

• Light kit is available for the Windmill. Options include 1902-86, 1903-86, 1904-86, 1905-86, 1974-86, 1975-86.


Room Suggestion

• The Windmill is a great choice for large rooms that are up to 400 square feet.

• Recommended indoor applications would be bedrooms, family or great rooms, main suite, loft, gym or exercise areas, garages, barns or warehouses.


Features

• UL listed for indoor location use.

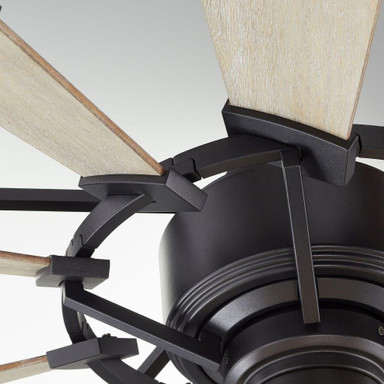

• Available in 3 finishes Black, Oiled Bronze and Galvanized.

• Quiet DC motor with included remote control system.

• Gorgeous blade design with 15 blades to create a windmill look and style.


Seasonal Settings

• Reverse your fan blade direction with the change of seasons for maximum comfort and energy savings.
• Summer Setting - When looking directly up at your fan from below, the blades should be moving in a counter clockwise direction, pushing cool air down.

• Winter Setting - When looking directly up at your fan from below, the blades should be moving in a clockwise direction, pushing air upwards, circulating warm air from ceilings.
